The mechanism is driven by two Kraken X44 brushless motors in a differential configuration where spinning both motors the same direction rotates the arm, and spinning them in opposite directions slides the gantry. This is accomplished with two 2-meter long HTD belts directly driven by the motors. For more rotational torque on the arm, the gantry integrates a low backlash 3D printed single stage planetary gearbox. The slider bearing blocks and ring gear are integrated resulting in a very low part count.

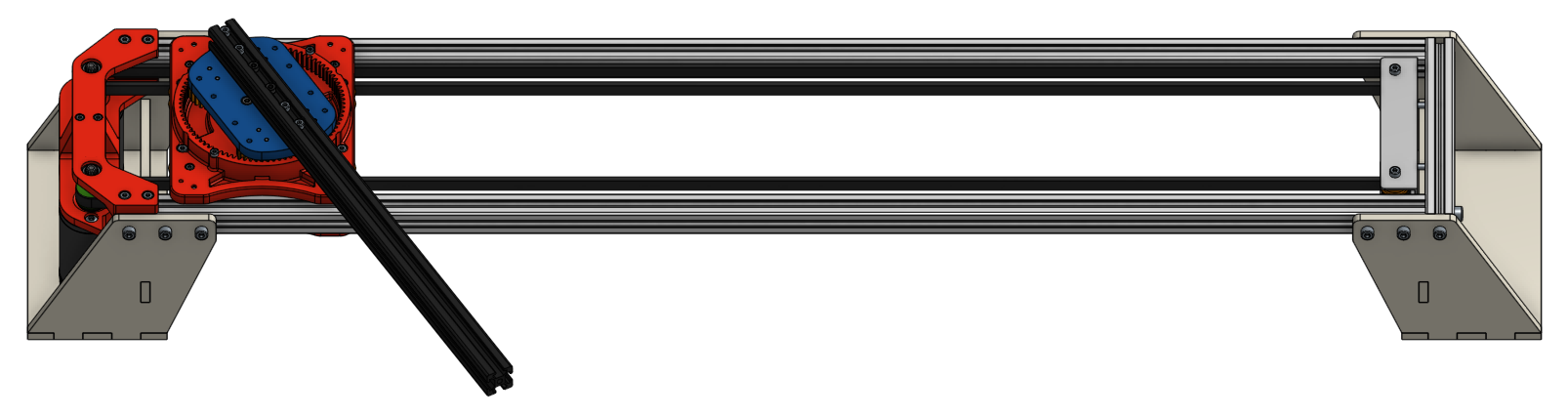

Full mechanism CAD

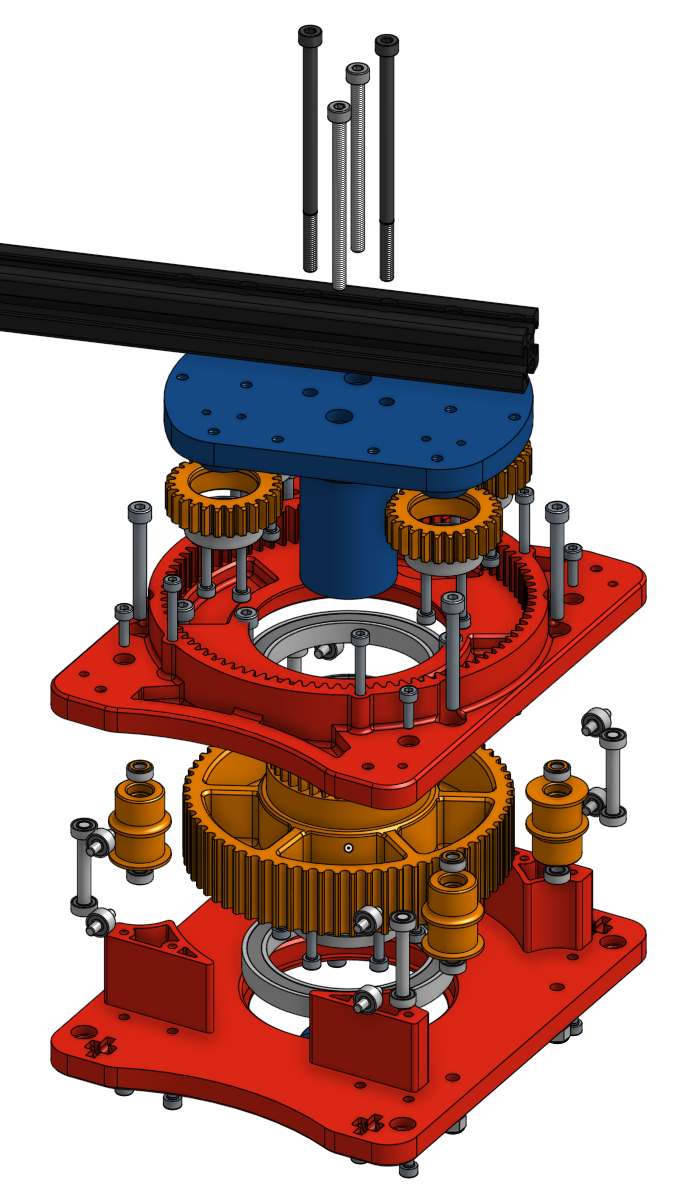

Gantry exploded view

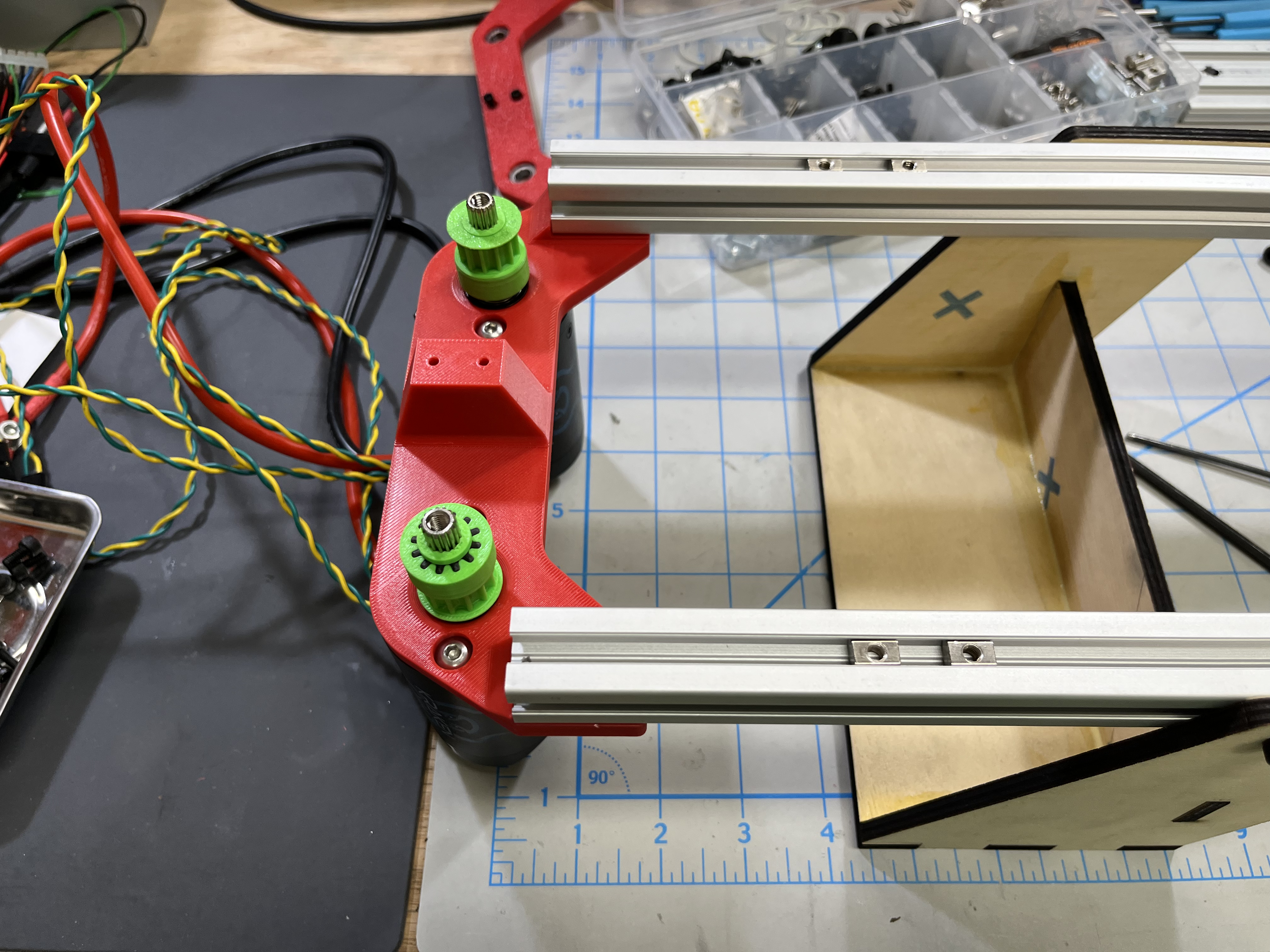

Motor mounting

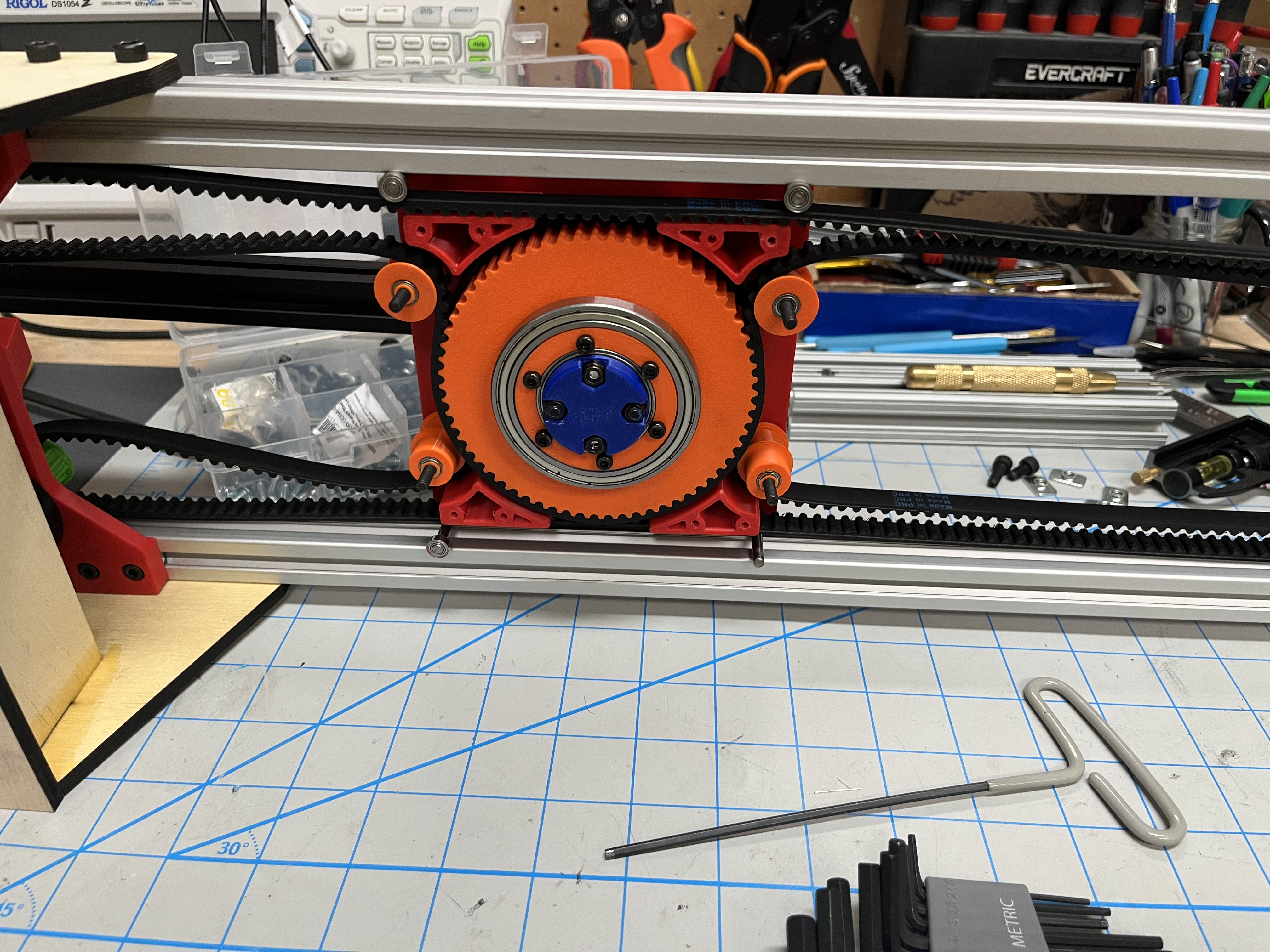

Gantry belt routing

Videos


System identification - a great showcase of how terrifyingly fast this thing can accelerate, this is only stepping at 5V rather than the 12V or 24V I run it at…
